15" Stealth-M5 - compact, quiet, versatile    Data Sheet:  English    Dutch     Francais    Deutsch    Russian    Espanol

Overview

New Infinity model with a True Flat (zero bezel) touch, powered by Intel's 4th Generation Core series !

The StealthTouch-M5 is a 15" all-in-one touchcomputer powered by Intel's Atom, available up to Core i7. The Stealth-M5 can be set up to run as a diskless and fanless thin client, reducing dust and grease intake, and improving the life of the terminal. Connectivity consists of Intel 10/100/1000 BaseT network, 6 USB, 4 Serials, and 24-volts poweredUSB for devices such as a printer.

The Stealth-M5's versatile design allows it to be configured to meet your application requirements and budget. The Stealth-M5 can run as a thin client utilizing solid-state disk with Windows Embedded. The Stealth-M5 supports several touchscreen technologies to meet your installation requirement: Resistive or Projective Capacitivewith multitouch capability.

With its compact footprint, the M5 takes up little countertop space and can easily be mounted on the wall or VESA pole. Additional features include WiFi wireless network, credit card reader, magnetic stripe reader, biometric fingerprint reader, integrated customer display, integrated barcode scanner, CD/DVD drive, privacy filter, and webcam.

Ideal for retail/restaurant/bar/quick service point-of-sale, industrial control, gaming, point-of-purchase, information kiosk, and healthcare applications.

Check out the S-Line model with built-in thermal printer!

Specifications

15" Stealth-M5- compact, quiet, versatile
Display 15" LCD, Active matrix TFT, 1024x768
Touchscreen Resistive, PCAP Multitouch
Processor Intel Atom DualCore 2GHz, Intel's 4th Generation (Haswell) Core Pentium / i3 / i5 / i7
Memory 2GB, up to 16GB (depending on processor type)
Video Memory 128MB, up to 1GB (processor dependent)
Storage Hard Drive, Solid-State Disk (SSD)
CD/DVD
Internal (optional)
Operating System Windows 7 Prof, POS 7, Windows 8.1, Linux
Network/Ethernet
Intel 10/100/1000 BaseT
WiFi (wireless) RF 802.11 a/g/n (optional)
Serial Ports 4
USB Ports Atom model: 6 x USB 2.0 / Core model: 3 x USB 2.0, 3 x USB 3.0
poweredUSB, +12 volts 1
poweredUSB, +24 volts 1
Parallel Port Optional
Cashdrawer Port Optional (Epson emulation, 24V)
Compact Flash Reader
Optional
Speakers 2 Watts, Stereo (optional)

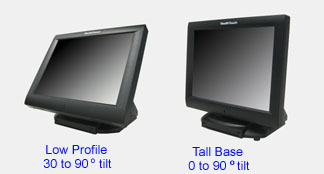

Mounting Options Standard: Desktop Base
Option: Wall or VESA mount (please call for part#)
Security Lock
Bolted (4mm screw), or Kensington MicroSaver
Bezel Color Standard: Black
Option: Dark Grey
Dimensions (W x H x D) With Base: 14.6 x 13.0 x 10.4 inches / 380 x 373 x 269 mm
Wallmount: 14.6 x 12.3 x 3.3 inches / 380 x 312 x 85 mm
Weight With Base: 22 lbs / 10 kgs
Wallmount: 11 lbs / 5 kgs
Operating Temperature 0° C to 40° C
Operating Humidity 20% to 80%
Power Supply
External, 120W, AC 100-240V
Agency Approvals FCC A, CE, UL, CCC
Integrated Add-ons

Magnetic stripe or Barcode slot reader
Fingerprint /Biometric reader (DigitalPersona)
Rear customer display or 10.1" LCD
Barcode scanner (omni-directional)
Proximity RFID reader
Privacy Filter
3" Thermal Printer

Add-Ons

Magnetic stripe reader

  • 46B-U32000 : USB
  • 46B-H32000 : HID
  • 46B-R32000 : Serial
MSR (card reader)

Customer Display
(rear facing)

  • 46B-RCRJ-ADX OPOS
  • 46B-RCRJ-PD3 Logic Contrl PD3000
check emulation
Customer Display (rear facing)


MSR & Fingerprint Reader (Digital Persona U.R.U)

  • 46B-U32F02
MSR & Fingerprint Reader (Digital Persona U.R.U.)

Secondary LCD Display
(customer facing)

  • 1H100002A110" LCD


Secondary LCD Display (customer facing)


Omni Barcode Scanner

  • 46-M5-MK3480U1
Omni Barcode Scanner

Wallmount/VESA 75
Factory configured

Wallmount/VESA 75


CD/DVD Drive
Factory installed

CD/DVD Drive

Privacy Filter
Factory installed

Privacy Filter

Configurator

Standard features:
Intel Gigabit network, 4 Serials, 6 USB, poweredUSB (12V and 24V), ext.VGA.
Select options and [Submit] to generate Part#. Contact 888-468-9757 or info@pioneerpos.com.

StealthTouch-M5
  Display
Privacy Filter

Part#
List Price
 Privacy Filter (Built-in)
  Processor
  Memory
  Storage
  O/S
  Touchscreen
  Internal Speaker
  Wireless Network
  Parallel (LPT) Port
  Add-on Media
  Mounting
  MSR Add-on
  Color Need printer? Check out the S-Line model.
