StealthKiosk : 17" Kiosk System

StealthKiosk

Overview

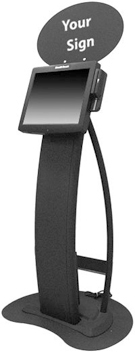

The Stealth-Kiosk is a complete kiosk system with a slim and friendly design. It does not take up as much space as conventional kiosk does. The body is made from strong tubular steel construction to withstand public use.

The Stealth-Kiosk incorporates a 17" all-in-one touchcomputer, therefore eliminating the need of bulky space for a PC and cables. It runs Intel's Dual Core or Core 2 Duo processors, is equipped with blazing network speed of 10/100/1000 BaseT with Intel's vPro technology. WiFi wireless is optional. Add-ons include magnetic stripe readers to process credit card or loyalty cards, and thermal printers for receipt printing.

You can easily add your own customized marketing message or signage to the Stealth-Kiosk.

Ideal for self-service applications for product information, store locators, gift registry, order entry, customer service, and labor management.

Specifications


StealthKiosk Data Sheet

Display 17" LCD, 1280x1024 resolution
Touchscreen InfraRed, Intellitouch SAW, Capacitive
Processor Intel Atom 1.6GHz, Dual Core 1.9GHz, Core 2 Duo 2.53GHz
Memory 1GB DDR2, up to 4GB
Storage 80GB Hard Drive, or larger
Operating System XP Prof, XP embedded, WePOS, Wndows 7, Linux
2nd VGA 1 (supports dual view)
Network Intel 10/100/1000 BaseT, with vPro (iAMT 4.0)
WiFi (RF802.11) Optional
Serial Ports 4
Parallel Port Optional
USB 2.0 5
poweredUSB, +12 volts 1
poweredUSB, +24 volts 1
Speakers 2 Watts per channel
Kiosk Construction Tubular steel
Dimension 29" W x 23" D x 60" H (66" H with signage)
Weight 115 lbs
Power Supply 100-240V auto-switch
Add-ons Magnetic stripe reader
Barcode scanner
Thermal printer

Add-Ons

Magnetic stripe reader
MSR
Printer
Printer

Configurator



Standard features: 10/100/1G network, 4 Serials, 1 Parallel, 5USB, 1 ext.VGA
Select options and [Submit] to generate Part#.  Contact 888-468-9757 or info@pioneerpos.com.

XV-2 Kiosk
  Display
 Part#
Lead Time
  Processor
  Memory
  Storage
  O/S
  Touchscreen
  Internal Speaker
  Wireless Network
  Thermal Printer
