15" S-Line with an integrated EPSON® printer      Data Sheet:  English     Dutch     Francais    Deutsch    Russian    Espanol

Overview

New Infinity model with a True Flat (zero bezel) touch, powered by Intel's 4th Generation Core series !

The S-Line redefines the all-in-one design by integrating an EPSON® thermal receipt printer into a touchcomputer. Its compact design allows easy setup (watch video), and will save precious counter space, reduce cable clutter, last but not least, generate additional revenue.

The S-Line can load the most commonly used paper size: 80mm (3 1/8") wide by 80mm (3 1/8") diameter. The printer has a quiet operation and prints a fast 250mm (9.8") per second. It has an auto-cutter which will help reduce paper jams. Replacing the paper is very easy, and works just like any standard thermal printer.

The most exciting feature of the S-Line is the printer's patented tool-less "slider" design. It allows the printer to be easily replaced in the field in about a couple minutes, without affecting the entire system (watch video).

The S-Line stands 15" tall and 14.5" wide (16.25" with MSR), and will free up the space beside your POS terminal by eliminating the need of an external printer. You can now use this space to generate additional revenue by displaying advertisements or selling merchandise.

The S-Line has a bright 15" display with a True Flat option, and is powered by Intel's Atom, up to 4th Generation of CORE i7. It runs most Windows operating systems, and offers a wide range of integrated peripherals, such as magnetic stripe reader, biometric reader, barcode scanner, and secondary display. Expandability includes Intel Gigabit network, 4 Serials, 6 USB, poweredUSB +12V and +24V.

Ideal for retail/restaurant/bar/quick service point-of-sale, point-of-purchase, self-ordering kiosks, and queue management.

Click here for the StealthTouch-M5 model

Specifications


15" S-Line with an integrated EPSON® printer
Display 15" LCD, Active matrix TFT, 1024x768
Touchscreen Resistive, PCAP Multitouch
Spill-proof Yes (front panel)
Processor Intel Atom DualCore 2GHz, Intel 4th Generation (Haswell) Core Pentium / i3 / i5 / i7
Memory 2GB, up to 16GB (processor dependent)
Storage SATA Hard Drive, or Solid State Disk (SSD)
Operating System Windows 7, POS 7, Windows 8.1, Linux
Network/Ethernet
Intel 10/100/1000 BaseT. Option: Wifi RF802.11 a/g/n
Serial Ports 4
Parallel Port Optional
USB Port Atom model: 6 x USB 2.0 / Core model: 3 x USB 2.0, 3 x USB 3.0
Powered USB +12V, +24V
2nd VGA 1 (supports dual view)
Printer (built-in, field-replacable)

EPSON® 3" Thermal with autocut
Speed : 250mm (9.8") per second
Driver : Epson ESC/POS, Windows, OPOS
Interface : Serial or USB
Paper Width : 80mm / 3.125", Diameter : 80mm / 3.125"

Cash Drawer Port Optional (Epson emulation, +24V)
Dimensions (W x H x D) 14.5 (16.25 with MSR) x 15.0 x 13.0inches
Weight 26 lbs
Operating Temperature 0° C to 40° C, 20% to 80% Humidity
Power Supply 150W, AC 100-240V
Integrated Add-ons
Mag. Stripe Reader
Biometric Reader (Digital Persona U.R.U)
2x20 Rear Display
10.1" LCD Display

Add-Ons

Magnetic stripe reader

  • 46B-U32000 : USB
  • 46B-H32000 : HID
  • 46B-R32000 : Serial
MSR (card reader)

Customer Display
(rear facing)

  • 46B-RCRJ-ADX OPOS
  • 46B-RCRJ-PD3 Logic Contrl PD3000
check emulation
Customer Display (rear facing)


MSR & Fingerprint Reader (Digital Persona U.R.U)

  • 46B-U32F02
MSR & Fingerprint Reader (Digital Persona U.R.U.)

Secondary LCD Display
(customer facing)

  • 1H100002A1 10"


Secondary LCD Display (customer facing)


Privacy Filter
Factory installed

Privacy Filter

Omni-directional Barcode Scanner

  • 49-B1-MK3480U2

Secondary LCD Display (customer facing)


Configurator

Standard features: Intel Gigabit network, 4 Serials, 6 USB, poweredUSB 12V, ext.VGA.
Select options and [Submit] to generate Part#. Contact 888-468-9757 or info@pioneerpos.com.

StealthTouch S-Line
  Display
Part#
List Price
  Privacy Filter (Built-in)
  Processor
  Memory
  Storage
  O/S
  Touchscreen
  Speakers
  Wireless Network
  Parallel LPT Port
  Card Reader
  Thermal Printer, 3", EPSON

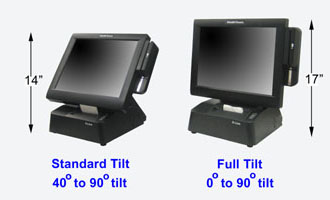

  Tilt Angle
  Bezel Color
